Commercial Grade Water / Garden Hose

  • Home
  • Commercial Grade Water / Garden Hose

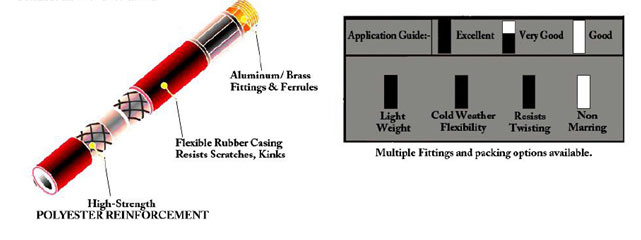

Technical Specifications

Tube

High Strength, Versatile, Oil Mist Resistance Rubber

Cover

Weather & Ozone Resistant Synthetic Rubber Blend;Several Finishes available

Reinforcement

Single or Multiple Layers of High Strength Polyester Yarn

Fittings

Anodized Alumium/ Brass End Fittings With Anodized Alumium/Bass Ferrules

Pressure

100:300PSI, 150:500 PSI* (Max. Working Pressure: Min. Burst Pressure)

Oil Resistance

Exceeds RMA Class ‘C’ Oil Resistance

Accessories

Bend- Restrictor Sleeve to prevent damage near ends

Advantages

Ideal for Home & Commerical use, Very Good Mechanical Properties, High Burst Strength, Handles Hot Water upto 180°F, Stays Flexible in – 30° to 190°F

technical-air-hose

POWERMAX WATER / GARDEN HOSE COMMERCIAL GRADE WITH FITTING
PART NO. I.D. W.P. LENGTH FITTING SAFETY RATIO
W.P. : B.P.		 COILS/ CARTON
PSI BAR
PCWGH580025 5 /8” 500 35 25’ 3/4” N.H. 3:01 4
PCWGH580050 5 /8” 500 35 50’ 3/4” N.H. 3:01 4
PCWGH580100 5 /8” 500 35 100’ 3/4” N.H. 3:01 2
PCWGH340025 3 /4” 500 35 25’ 3/4” N.H. 3:01 4
PCWGH340050 3 /4” 500 35 50’ 3/4” N.H. 3:01 3
PCWGH340100 3 /4” 500 35 100’ 3/4” N.H. 3:01 1


PART NO. I.D. W.P. LENGTH FITTING SAFETY RATIO
W.P. : B.P.		 COILS/ CARTON
PSI BAR
PCWGH120025 1 /2” 300 20 25’ 3 /4” N.H. 3:01 4
PCWGH120050 1 /2” 300 20 50’ 3 /4” N.H. 3:01 4
PCWGH120100 1 /2” 300 20 100’ 3 /4” N.H. 3:01 2
PCWGH580025 5 /8” 300 20 25’ 3 /4” N.H. 3:01 4
PCWGH580050 5 /8” 300 20 50’ 3 /4” N.H. 3:01 4
PCWGH580100 5 /8” 300 20 100’ 3 /4” N.H. 3:01 2
PCWGH340025 3 /4” 300 20 25’ 3 /4” N.H. 3:01 4
PCWGH340050 3 /4” 300 20 50’ 3 /4” N.H. 3:01 3
PCWGH340100 3 /4” 300 20 100’ 3 /4” N.H. 3:01 1

POWERMAX WATER / GARDEN HOSE COMMERCIAL GRADE WITH CUSTOM LENGTH
PART NO. I.D. WORKING PRESSURE
INCH MM BAR MPa PSI
PCWGH12125 1/2 12.5 10.2 1 145
PCWGH58016 5/8 16 10.2 1 145
PCWGH12125 3/4 19 10.2 1 145
PCWGH10025 1 25 10.2 1 145
PCWGH12125 1/2 12.5 7 0.7 100
PCWGH58016 5/8 16 7 0.7 100
PCWGH34019 3/4 19 7 0.7 100
PCWGH10025 1 25 7 0.7 100
