Contractor Grade Air Hose

  • Home
  • Contractor Grade Air Hose

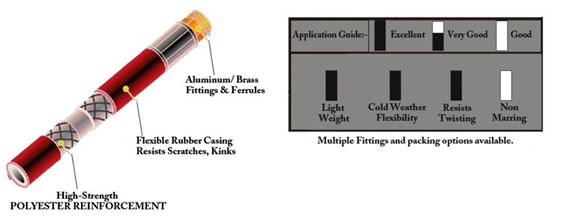

Technical Specifications

Tube

High Strength, Versatile, Oil Mist Resistance Rubber

Cover

Weather & Ozone Resistant Synthetic Rubber Blend

Reinforcement

Single or Multiple Layers of High Strength Polyester Yarn

Fittings

Anodized Alumium/ Brass End Fittings With Anodized Alumium / Bass Ferrules

Pressure

W.P: 200PSI, 250PSI, 300PSI Exceeds RMA 4:1 Safety Factor* (Bust Pressure To Working Presure Ratio)

Oil Resistance

Exceeds RMA Class ‘C’ Oil Resistance

Accessories

Bend- Restrictor Sleeve to prevent damage near ends Thread Protector Cap

Advantages

Heavy Quality Contractor Grade Hose, Very Good Mechanical Properties High Burst Strength, Stays Flexible in – 30° to 190°F

technical-air-hose

POWERMAX AIR HOSE CONTRACTOR GRADE WITH FITTINGS
PART NO. I.D. W.P. LENGTH FITTING SAFETY RATIO
W.P. : B.P.		 COILS/ CARTON
PSI BAR
PRDYAH140025 1 /4” 300 20 25’ 1 /4” NPT 3:1 8
PRDYAH140050 1 /4” 300 20 50’ 1 /4” NPT 3:1 6
PRDYAH140100 1 /4” 300 20 100’ 1 /4” NPT 3:1 4
PRDYAH380025 3 /8” 300 20 25’ 1 /4” NPT 3:1 8
PRDYAH380050 3 /8” 300 20 50’ 1 /4” NPT 3:1 6
PRDYAH380100 3 /8” 300 20 100’ 1 /4” NPT 3:1 2
PRDYAH120025 1/2” 300 20 25’ 3 /8” NPT 3:1 6
PRDYAH120050 1/2” 300 20 50’ 3 /8” NPT 3:1 4
PRDYAH120100 1/2” 300 20 100’ 3 /8” NPT 3:1 2
PRDYAH516025 5/16” 300 20 25’ 1 /4” BSP 3:1 8
PRDYAH516050 5/16” 300 20 50’ 1 /4” BSP 3:1 6
PRDYAH516100 5/16” 300 20 100’ 1 /4” BSP 3:1 2

PART NO. I.D. W.P. LENGTH FITTING SAFETY RATIO
W.P. : B.P.		 COILS/ CARTON
PSI BAR
PRDYAH140025 1 /4” 300 20 25’ 1 /4” NPT 3:1 8
PRDYAH140050 1 /4” 300 20 50’ 1 /4” NPT 3:1 6
PRDYAH140100 1 /4” 300 20 100’ 1 /4” NPT 3:1 4
PRDYAH380025 3 /8” 300 20 25’ 1 /4” NPT 3:1 8
PRDYAH380050 3 /8” 300 20 50’ 1 /4” NPT 3:1 6
PRDYAH380100 3 /8” 300 20 100’ 1 /4” NPT 3:1 2

PREMIER AIR HOSE DIY GRADE CUSTOM LENGTH
PART NO. I.D. WORKING PRESSURE
INCH MM BAR MPa PSI
PRDYAH14006 1/4 6.3 21 2 300
PRDYAH51608 5/16 8 21 2 300
PRDYAH38095 3/8 9.5 21 2 300
PRDYAH12125 1/2 12.5 21 2 300
PRDYAH58016 5/8 16 21 2 300
PRDYAH34019 3/4 19 21 2 300
PRDYAH10025 1 25 21 2 300
PRDYAH14006 1/4 6.3 14.2 1.4 200
PRDYAH51608 5/16 8 14.2 1.4 200
PRDYAH38095 3/8 9.5 14.2 1.4 200
PRDYAH12125 1/2 12.5 14.2 1.4 200
PRDYAH58016 5/8 16 14.2 1.4 200
PRDYAH34019 3/4 19 14.2 1.4 200
PRDYAH10025 1 25 14.2 1.4 200
