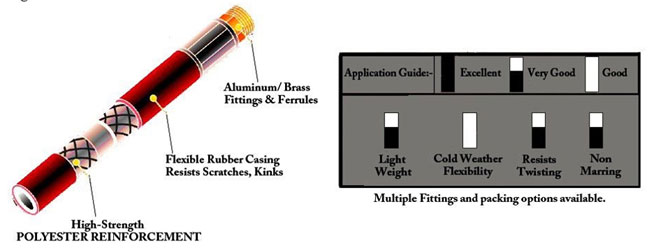

Oil Mist Resistance Rubber
High Strength Rubber
Single or Multiple Layers of High Strength Polyester Yarn
Anodized Alumium/ Brass End Fittings With Anodized Alumium / Bass Ferrules
W.P: 150PSI, 200PSI, 300PSI Exceeds RMA 4:1 Safety Factor* Bust Pressure To Working Presure Ratio)
Exceeds RMA Class ‘C’ Oil Resistance
Economical, Versatile Air Hose, Good Mechanical Properties, High Burst Strength
| PREMIER AIR HOSE DIY GRADE WITH FITTING | |||||||
|---|---|---|---|---|---|---|---|
| PART NO. | I.D. | W.P. | LENGTH | FITTING | SAFETY RATIO W.P. : B.P. |
COILS/ CARTON | |
| PSI | BAR | ||||||
| PRDYAH140025 | 1 /4” | 300 | 20 | 25’ | 1 /4” NPT | 3:01 | 8 |
| PRDYAH140050 | 1 /4” | 300 | 20 | 50’ | 1 /4” NPT | 3:01 | 6 |
| PRDYAH140100 | 1 /4” | 300 | 20 | 100’ | 1 /4” NPT | 3:01 | 4 |
| PRDYAH380025 | 3 /8” | 300 | 20 | 25’ | 1 /4” NPT | 3:01 | 8 |
| PRDYAH380050 | 3 /8” | 300 | 20 | 50’ | 1 /4” NPT | 3:01 | 6 |
| PRDYAH380100 | 3 /8” | 300 | 20 | 100’ | 1 /4” NPT | 3:01 | 2 |
| PRDYAH120025 | 1/2” | 300 | 20 | 25’ | 3 /8” NPT | 3:01 | 6 |
| PRDYAH120050 | 1/2” | 300 | 20 | 50’ | 3 /8” NPT | 3:01 | 4 |
| PRDYAH120100 | 1/2” | 300 | 20 | 100’ | 3 /8” NPT | 3:01 | 2 |
| PRDYAH516025 | 5/16” | 300 | 20 | 25’ | 1 /4” BSP | 3:01 | 8 |
| PRDYAH516050 | 5/16” | 300 | 20 | 50’ | 1 /4” BSP | 3:01 | 6 |
| PRDYAH516100 | 5/16” | 300 | 20 | 100’ | 1 /4” BSP | 3:01 | 2 |
| PART NO. | I.D. | W.P. | LENGTH | FITTING | SAFETY RATIO W.P. : B.P. |
COILS/ CARTON | |
|---|---|---|---|---|---|---|---|
| PSI | BAR | ||||||
| PRDYAH140025 | 1 /4” | 300 | 20 | 25’ | 1 /4” NPT | 3:01 | 8 |
| PRDYAH140050 | 1 /4” | 300 | 20 | 50’ | 1 /4” NPT | 3:01 | 6 |
| PRDYAH140100 | 1 /4” | 300 | 20 | 100’ | 1 /4” NPT | 3:01 | 4 |
| PRDYAH380025 | 3 /8” | 300 | 20 | 25’ | 1 /4” NPT | 3:01 | 8 |
| PRDYAH380050 | 3 /8” | 300 | 20 | 50’ | 1 /4” NPT | 3:01 | 6 |
| PRDYAH380100 | 3 /8” | 300 | 20 | 100’ | 1 /4” NPT | 3:01 | 2 |
| PREMIER AIR HOSE DIY GRADE CUSTOM LENGTH | |||||
|---|---|---|---|---|---|
| PART NO. | I.D. | WORKING PRESSURE | |||
| INCH | MM | BAR | MPa | PSI | |
| PRDYAH14006 | 1/4 | 6.3 | 21 | 2 | 300 |
| PRDYAH51608 | 5/16 | 8 | 21 | 2 | 300 |
| PRDYAH38095 | 3/8 | 9.5 | 21 | 2 | 300 |
| PRDYAH12125 | 1/2 | 12.5 | 21 | 2 | 300 |
| PRDYAH58016 | 5/8 | 16 | 21 | 2 | 300 |
| PRDYAH34019 | 3/4 | 19 | 21 | 2 | 300 |
| PRDYAH10025 | 1 | 25 | 21 | 2 | 300 |
| PRDYAH14006 | 1/4 | 6.3 | 14.2 | 1.4 | 200 |
| PRDYAH51608 | 5/16 | 8 | 14.2 | 1.4 | 200 |
| PRDYAH38095 | 3/8 | 9.5 | 14.2 | 1.4 | 200 |
| PRDYAH12125 | 1/2 | 12.5 | 14.2 | 1.4 | 200 |
| PRDYAH58016 | 5/8 | 16 | 14.2 | 1.4 | 200 |
| PRDYAH34019 | 3/4 | 19 | 14.2 | 1.4 | 200 |
| PRDYAH10025 | 1 | 25 | 14.2 | 1.4 | 200 |
